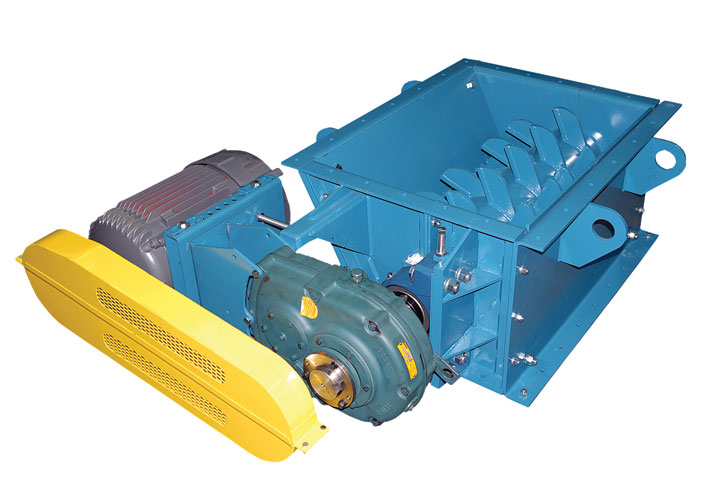

J&H Rotary Lump Breaker

J&H manufactures a complete line of Rotary Lump Breakers. These machines are invaluable for plants using lumpy raw material such as SSP. They can also be great value in reducing scale from dryer discharges and bucket elevator prior to the material being fed to the screening machines and other types of mills. J&H manufactures units from 18" to 42" wide with varying breaker bar and tooth configurations to suite your particular size needs.

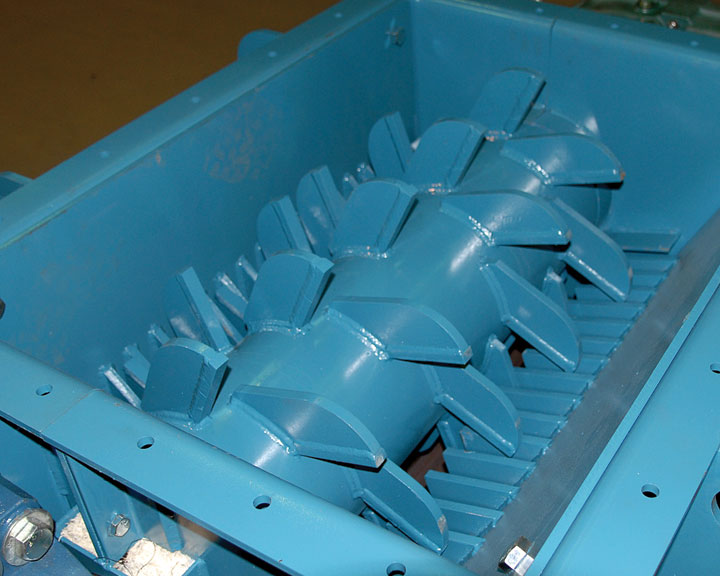

Breakers utilize AR400 leading edge teeth and AR400 replaceable breaker bars. Unit's internals can be served in place through their "split housing" design. All are equipped with class II gearing and electronic motion sensor for blockage protection.
