Low Profile Distribution Feeder

Introducing the All-New J&H Low-Profile Distribution Feeder

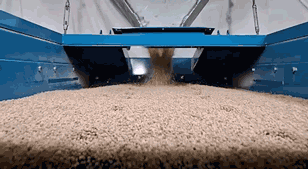

The J&H Low Profile Distribution Feeder is a low-profile solution for plants where vertical space is limited. Lower-frequency 900–1,200 RPM vibrator motors convey material along shallow-angle troughs while transforming a concentrated stream into a full-width, uniformly distributed bed of material.

Uniform distribution improves the efficiency, capacity, and wear life of downstream equipment, including:

• Screening machines
• Crushers
• Lump breakers
• Sorters
• Other equipment requiring a controlled, evenly distributed feed

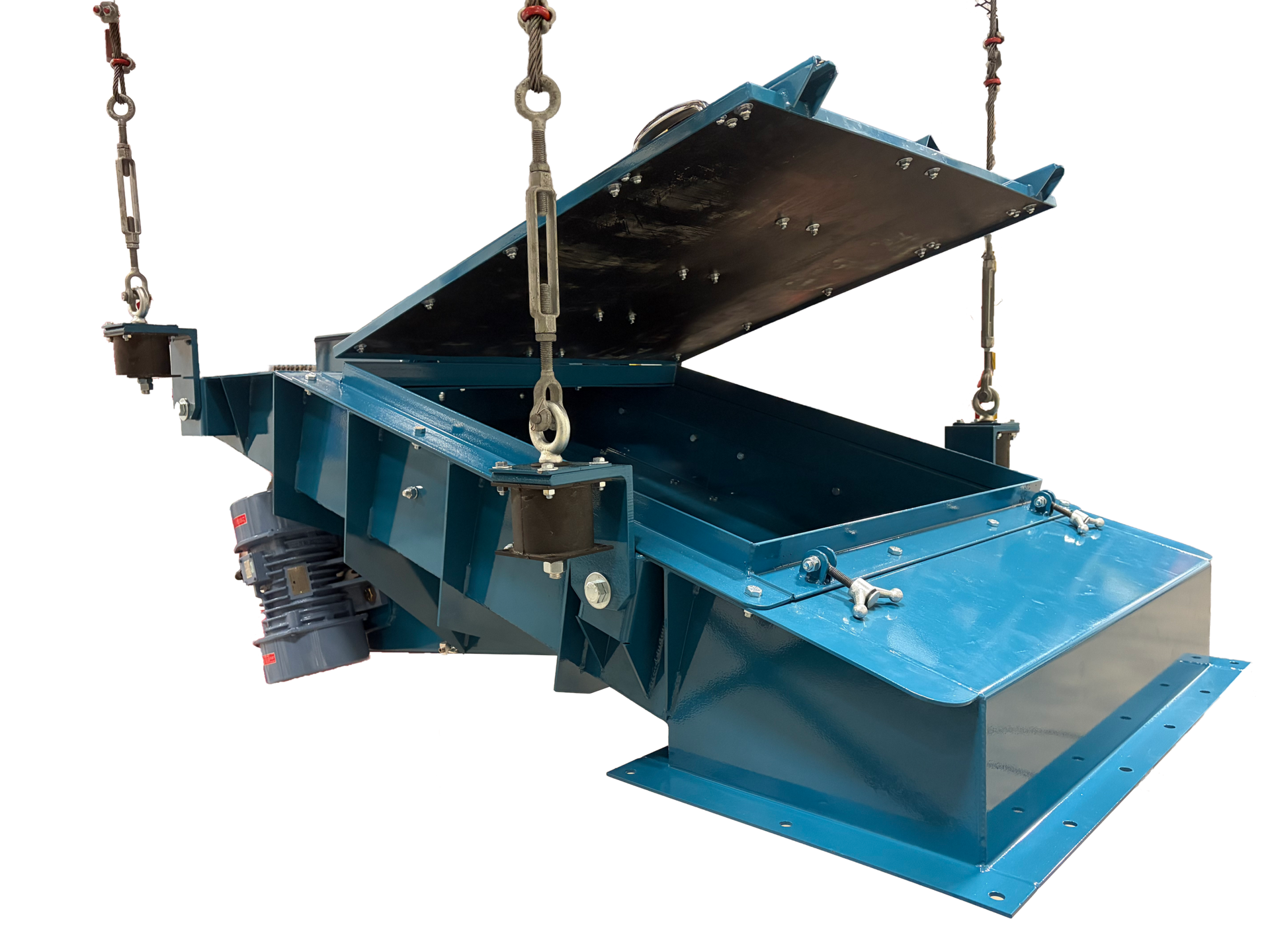

The inlet flange can be sized to match the upstream screen discharge, creating a compact connection with minimal vertical drop. Flexible connections accommodate feeder movement, while J&H-developed rubber buffers isolate vibration from the plant structure.

Full-width covers provide convenient access for inspection and maintenance.

Key Advantages

• Low-profile conveying for space-restricted layouts
• Full-width, uniform material distribution
• Improved downstream equipment utilization
• Reduced uneven loading and concentrated wear
• Isolated vibration and flexible connections
• Application-specific sizes and configurations

The Low Profile Distribution Feeder is ideal for transferring oversized material from primary screens to crushers on the level below—and for any application where better feed distribution means better process performance.

Click here to view the the Low Profile Distribution Feeder brochure or here to view the full Low Profile Distribution Feeder video.
